Extreme Tools 72" RX Series 31-Drawer 25" Deep Roller Cabinet and Chest Combo - Blue

72" RX Series 19-Drawer Roller Cabinet (RX722519RCBL)

Extreme Tools® RX Series RX722519RC 72” 19 Drawer Roller Cabinet is the latest in our RX Series. This professional quality tool box features 3 extra long drawers with a support bar to provide strength and prevent warping or twisting. Patented self-latching, Quick Release drawer pulls keep drawers closed even when moving. Each drawer uses full-extension ball bearing slides that let you load 100-200* lbs per drawer (*drawers with double slides.) This huge roller cabinet gives you loads of space at an affordable price with the assurance of Extreme Tools® quality.


RX722519RC Key Features:

• Overall Dimensions:  72”W x 25”D x 47”H
• Heavy duty 12 gauge steel frame construction
• 3 Extra long drawers with added support bar to fit large tools
• Full-width, polished extruded aluminum drawer pulls

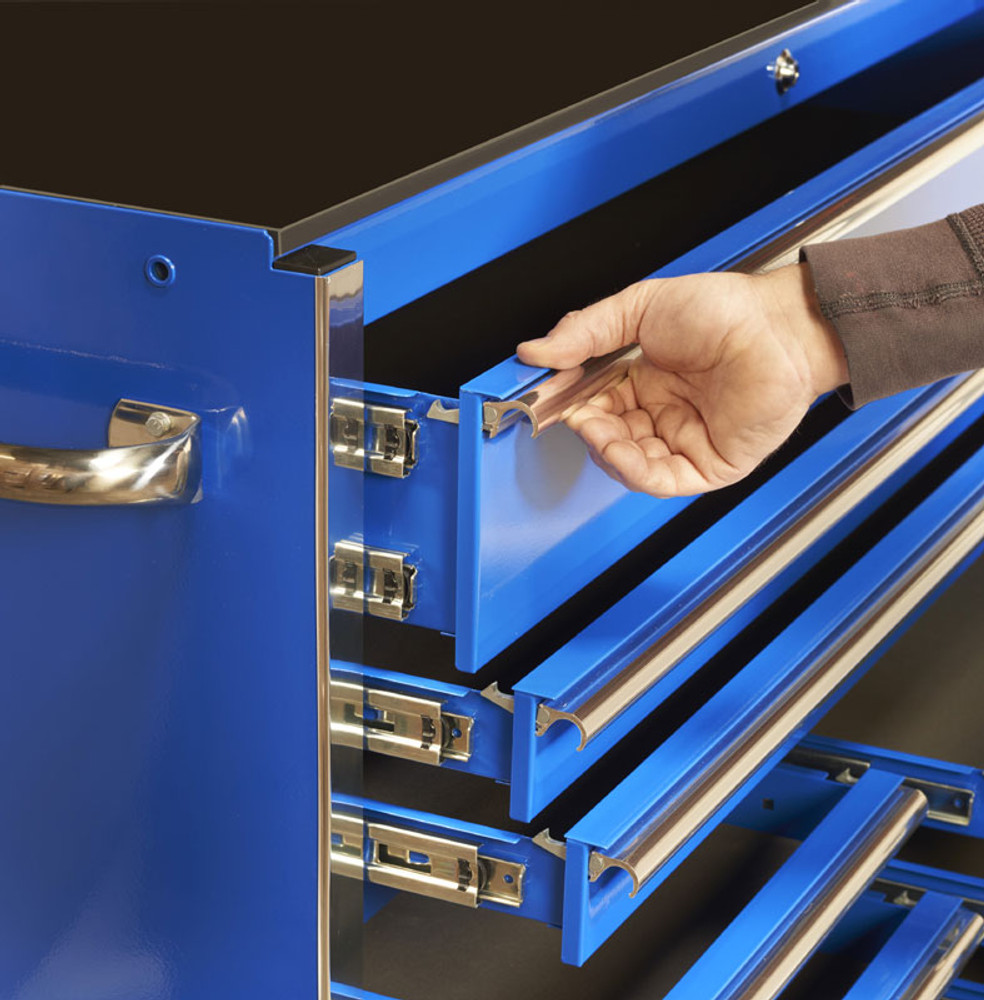

• Patented Quick Release self-latching drawer pulls keep drawers closed even when moving
• 25” Cabinet depth

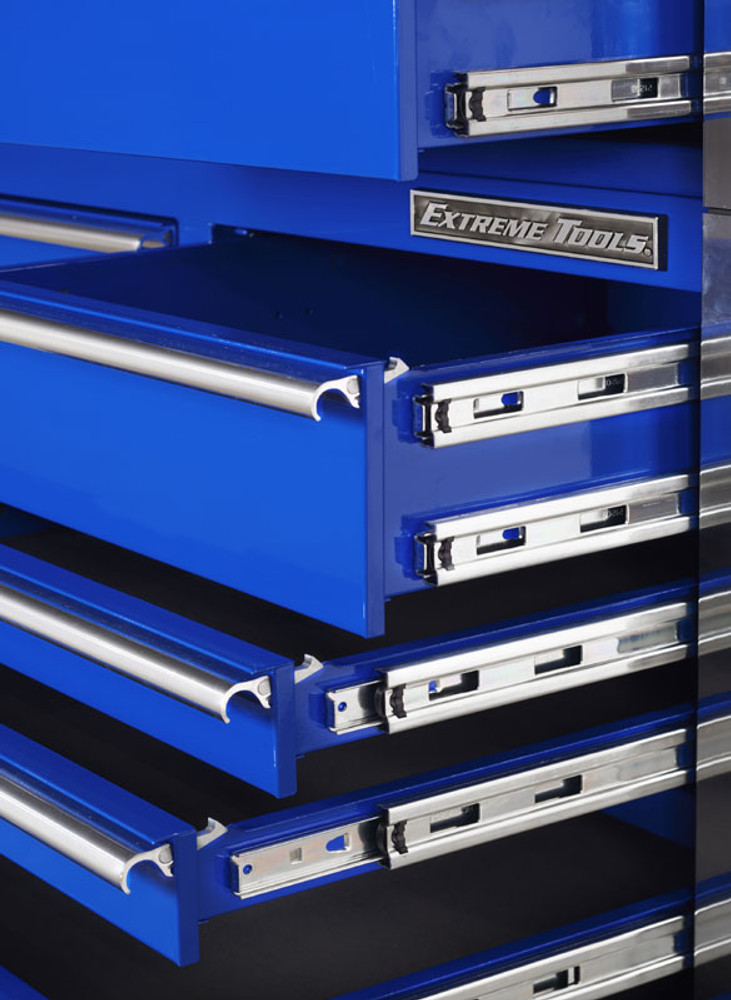

• Full-extension ball bearing slides on drawers allow drawers to open and close smoothly
• Ball bearing slides load rated 100 lbs per set of slides drawer
• Deep drawers with 2 sets of slides hold up to 200 lbs.
• AkzoNobel high gloss powder coat finish
• Tubular, coded security lock and keys
• Tubular stainless steel side handle on roller cabinet included
• 6 – 6”x 2” Caster (4 locking swivels and 2 rigid)
• Foam drawer liners included
• Total Capacity:  33,883 cu in
• Net Weight:  558 lbs
• Shipping Weight: 650 lbs
• 5 Year Warranty

Drawer Dimensions:
1 Drawer - 51.4”W x 23.3”D x 5.8”H;
2 Drawers- 51.4”W x 23.3”D x 2.8”H;
8 Drawer - 15.7”W x 23.3”D x 2.8”H;
2 Drawer - 15.7”W x 23.3”D x 11.7”H
3 Drawer s- 34.1”W x 23.3”D x 2.8”H;
2 Drawer - 34.1”W x 23.3”D x 5.8”H;
1 Drawer - 15.7”W x 23.3”D x 5.8”H

Click Here for PDF Schematic Drawing

Click to view PDF Specifications and Brochure

72" RX Series 12-Drawer Top Chest (RX722512CHBL)

Extreme Tools® RX Series 72" 12-Drawer Top Chests are the latest addition to the Extreme Tools® family of professional tool boxes. These top chests incorporate the key features you want like our patented Quick Release, self-latching drawer pulls, heavy duty steel drawers which use ball bearing slides, full-width polished aluminum drawer pulls and chrome trim.  Each drawer can hold up to 100-200* lbs of your tools and equipment.  The huge open till area under the lid makes it easy to see what is in that space and gives you room to store larger objects.

RX Series Top Chest features:

• Overall Dimensions:  72”W x 25”D x 22.25”H
• Patented Quick Release self-latching drawer pulls keep drawers closed even when the tool box is moving
• Heavy duty steel construction makes your tool box strong
• 25” cabinet depth gives plenty of storage space
• 2 side handles make moving your top chest easy
• AkzoNobel High gloss powder coat finish resists scratches, stains and chemicals and keeps your box looking great for years to come.
• Drawers use heavy duty ball bearing slides load rated 100 – 200* lbs per drawer
 *Drawers with double sets of slides
• EVA high density foam drawer liners are included to stop tools from sliding and scratching your drawers.
• Full-width polished aluminum drawer pulls make opening drawers easy
• Chrome trim adds the finishing touch
• Secure tubular coded lock system keeps your tools safe while you are away
• Capacity:  19.631 cu. in.
• Net Weight:  348 lbs.
• Shipping Weight: 372 lbs.


Click Here for PDF Schematic Drawing
